Heart nebula
Chasing the Heart nebula
Current stagePlanning
- PlanningPreparing the target, composition, and capture requirements.
- CapturingCollecting pictures across one or more imaging sessions.
- CalibratingSelecting, calibrating, and stacking the captured frames.
- ProcessingDeveloping the stacked data into the final image.
- CompletedPublishing the finished image and lessons learned.
A multi-session journey to explore the Heart Nebula and learn more about astrophotography.
- Started
- 24/09/2026
- Updated
- 26/09/2026
- Sessions
- 1
Having the whole Veil nebula shot, the Heart nebula would be a great next target.
Framing the Heart Nebula
With the next target chosen — the Heart Nebula — it was time to figure out exactly where to point the telescope.

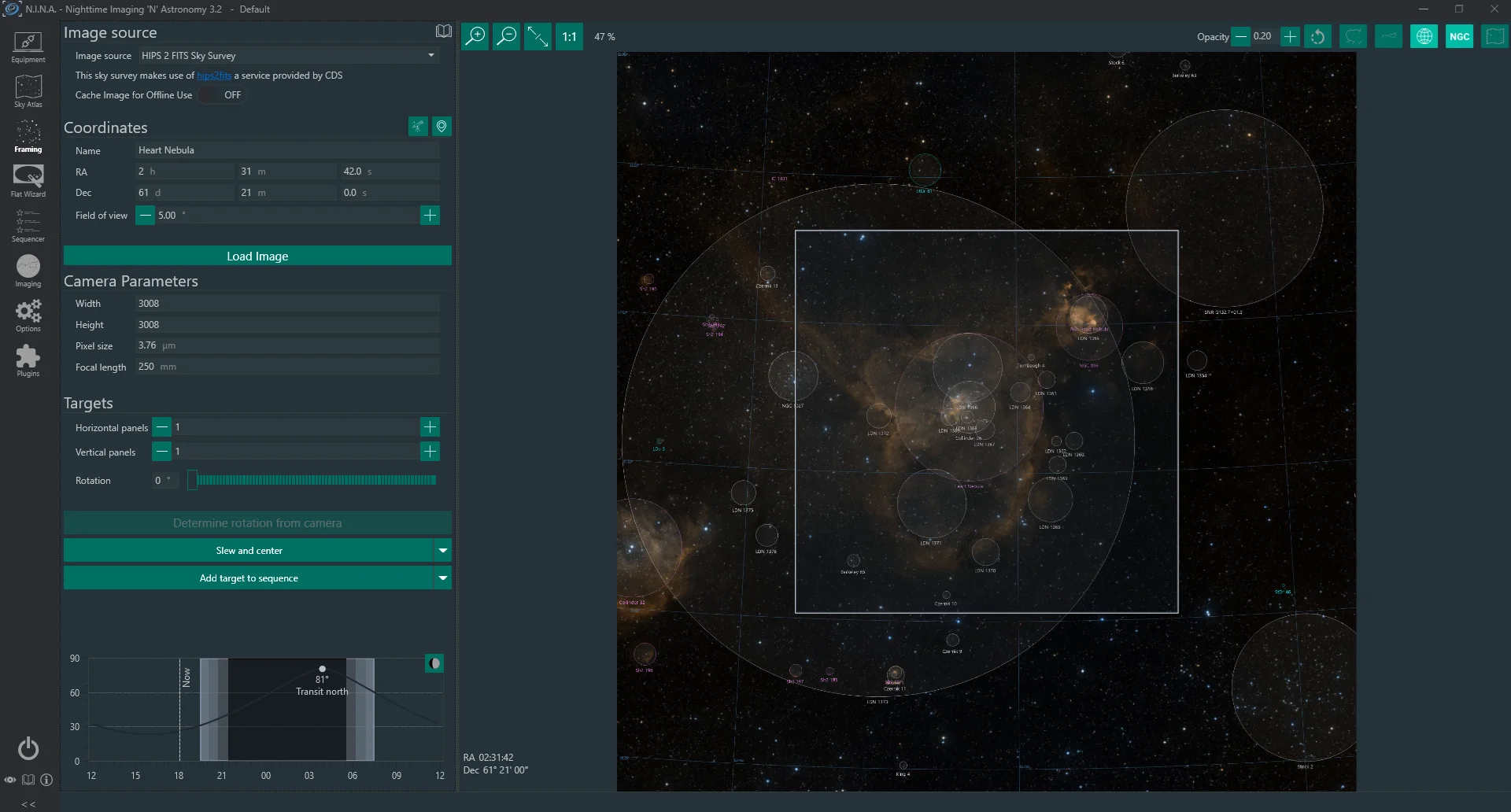

And this is where N.I.N.A.’s Framing Assistant comes in.
You give it your target, camera dimensions and focal length, and it shows exactly how much of the sky will fit onto the camera sensor. That white rectangle in the middle represents my actual field of view, allowing me to position and rotate the frame before spending several hours photographing it.
Which is incredibly useful, because “somewhere around the Heart Nebula” apparently isn’t considered sufficiently accurate.
The nice thing is that I can now carefully compose the image beforehand, decide which parts of the nebula I want inside the frame and even have N.I.N.A. slew the telescope directly to the correct coordinates.
The slightly less reassuring thing is everything else on this screen.
Coordinates. Degrees. Arcminutes. Sensor dimensions. Pixel sizes. Focal lengths. Rotation angles. Transit graphs. Approximately four thousand circles with names I’ve never heard of.
So naturally, I looked at all of this highly sophisticated astronomical information, carefully considered my options and thought:
“Yeah… the white rectangle looks about right there.”
And honestly, that seems to be working surprisingly well. 😅
There is something wonderfully absurd about using star catalogues, precise celestial coordinates, plate solving and computer-controlled telescope positioning just so I can spend the next several hours collecting photons from a cloud roughly 7,500 light-years away…
…only to eventually open the result in Photoshop and start moving sliders from left to right again.
25 September - New Gear Day!
Another new piece of equipment has found its way into the collection: an Optolong L-Ultimate dual-band filter.
Which is essentially a rather expensive piece of glass whose main purpose is to block light.
Astrophotography really is a fascinating hobby. First I spend money on a telescope specifically designed to collect as much light as possible… and then I spend more money on a filter to stop most of that light from getting through.
Perfectly sensible.The clever part, of course, is that the L-Ultimate is extremely selective about which light gets through. It’s designed for emission nebulae and has two very narrow passbands centred around Hydrogen-alpha (Hα) and Oxygen III (OIII) — two important emission lines produced by glowing gas in many nebulae. Most other wavelengths, including a lot of unwanted light pollution, are heavily suppressed.
In other words, the filter looks at all the light arriving at my telescope and basically says:
Hydrogen? You may enterOxygen? You’re on the listStreetlights? Absolutely notEverything else? Please leave25 September 2026
Session one
76 frames · 180s each
A whole day of nice clear weather that also resulted in a clear evening and night. So time to set everything up again to start shooting my next target.
Two for the price of one
Got two setups going for tonight, where both setups I would need to focus and calibrate the auto guider first. And more interestingly, both setups works on just one laptop 😊
That was quite a hassle still since both mounts are from ZWO, and there is only one ASI Mount ASCOM Server (official ZWO app) instance possible per windows instance. Found a github repo that makes it available to use another ZWO mount through the USB port. Once I got that working, I knew I had another problem.. I only have two USB slots on my laptop, where I would need three slots for this setup to work.
Ideally I would need a powered USB hub for this, since on this hub will be the ASI26000MC camera and the AM5N mount. What I used for this.. a HP G5 docking station 😂
It’s not what the docking station is designed for, but it does the trick haha.
So the redcat is connected with bluetooth and the camera directly to the laptop, so this connection setup is what I normally use anyway. Just to make sure I can shoot as long as possible with the known setup.
